Case Studies

Titan Maintenance Gate & Titan Slide Gate Handling Ground Calcium

Published
October 6, 2020
Case Studies

Titan Maintenance Gate & Titan Slide Gate Handling Ground Calcium

Published
October 6, 2020
Client:
Limestone Processor, Central US
Size:
Titan Maintenance Gate: 12” (304 mm) 140 lbs. (64 kg) - Titan Slide Gate: 12” (304 mm) TSG 100 lbs (45 kg)
Application:
Four identical units were ordered for this application.

Features:

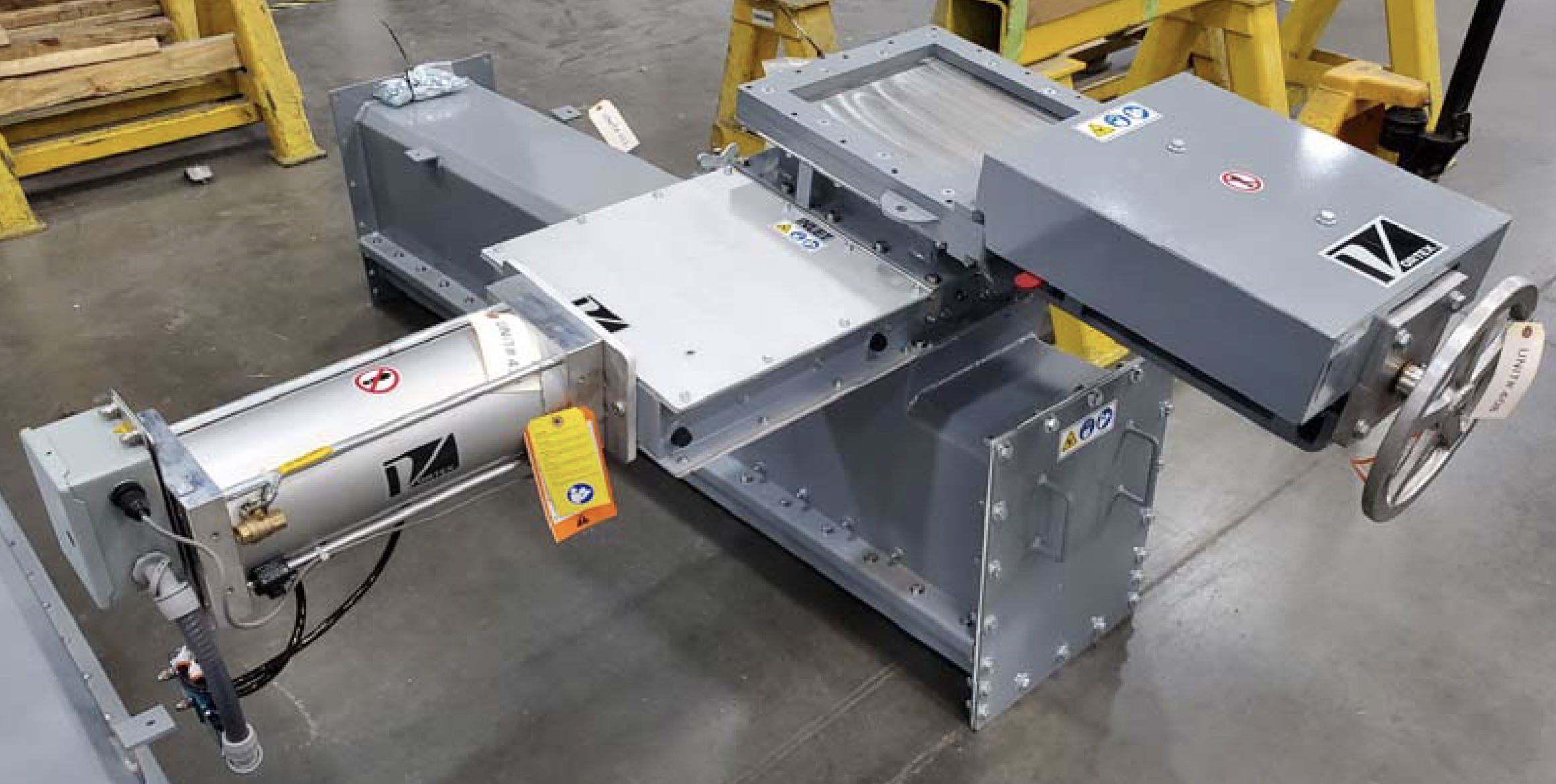

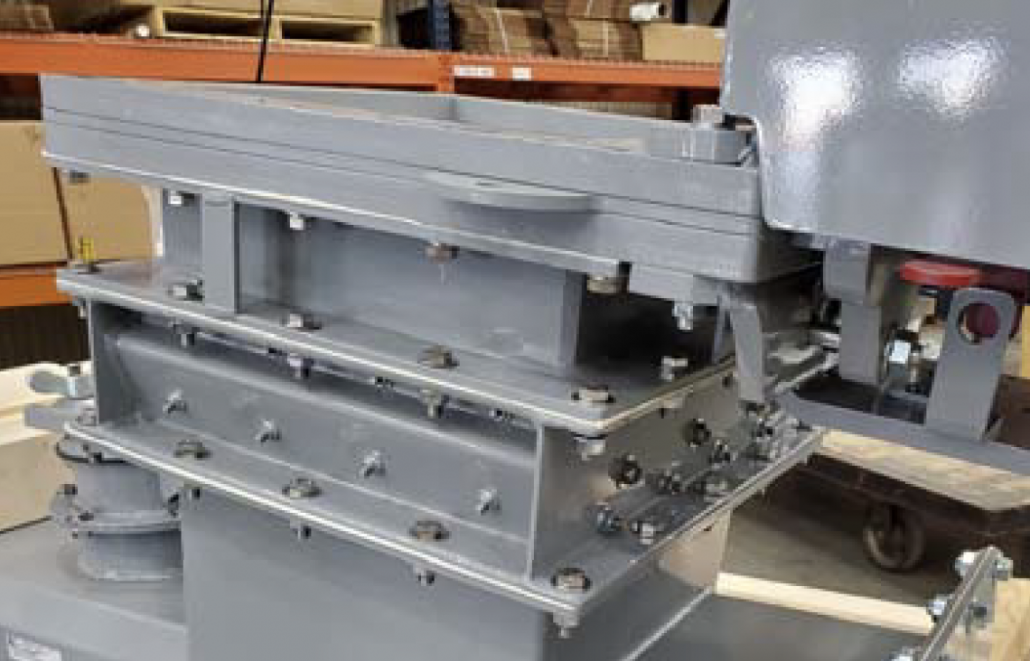

This Vortex hand wheel Titan Maintenance Gate and pneumatically actuated Titan Slide Gate stack up is utilized to control the flow of finely-ground limestone into a Vortex Aero-Slide for conveyance and transport.

The Titan Maintenance Gate allows shut off of material from a holding bin in case equipment repairs are necessary downstream.

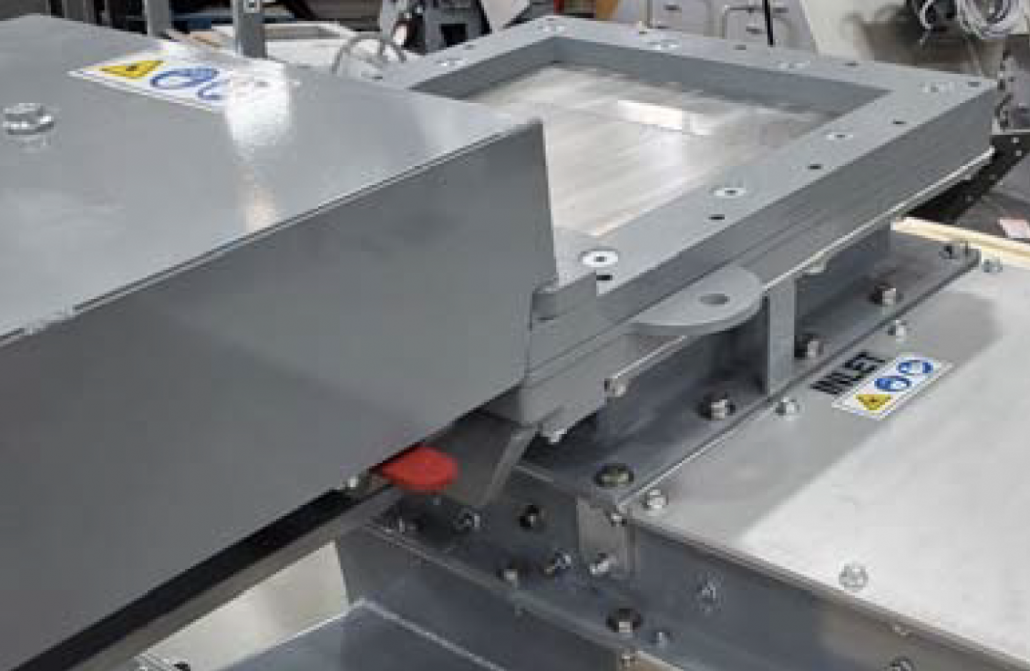

The Titan Slide Gate was manufactured with a polymer end seal and “fine material” bonnet seal to address product size.
