Case Studies

Titan Pressure Valve Venting Hot Air From a Furnace

Published
July 8, 2020
Case Studies

Titan Pressure Valve Venting Hot Air From a Furnace

Published
July 8, 2020
Client:
Magnesium Oxide Plant, Canada
Product Quantity:
Size:
10” ( 254 mm) – 390 lbs. (177 kg)
Application:

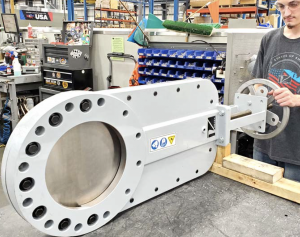

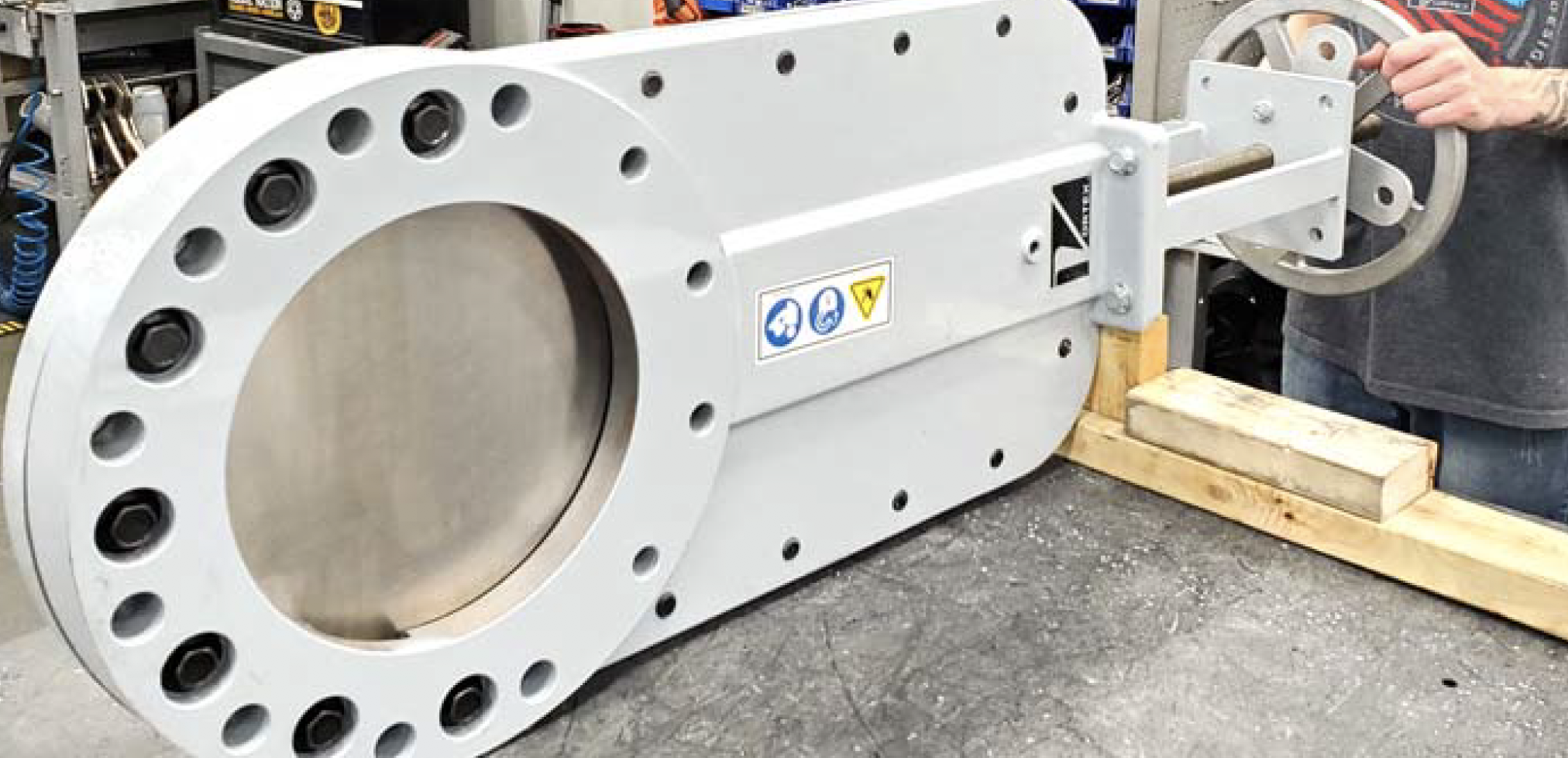

This hand wheel actuated Vortex Titan Pressure Valve will be installed in a line that is venting air from a furnace. It will seal minimal differential pressure.

Features:

One of the applications the Vortex Titan Pressure Valve was designed for was instances where increased temperatures were involved.

The maximum temperature this valve will experience is 600° F (315° C). As such it is painted with a special high-temperature paint.

Five revolutions of the chain wheel actuator move the blade 1” (25 mm). The actuator is lockable.
