Case Studies

Orifice Gate Handling PVC Compound

Published
June 23, 2021
Case Studies

Orifice Gate Handling PVC Compound

Published
June 23, 2021
Client:
Design build/service provider | Midwest, United States
Product Quantity:
Size:
4" (101mm)
Application:
In this application, the Orifice Gates will be used to stop the material flow of PVC compound.

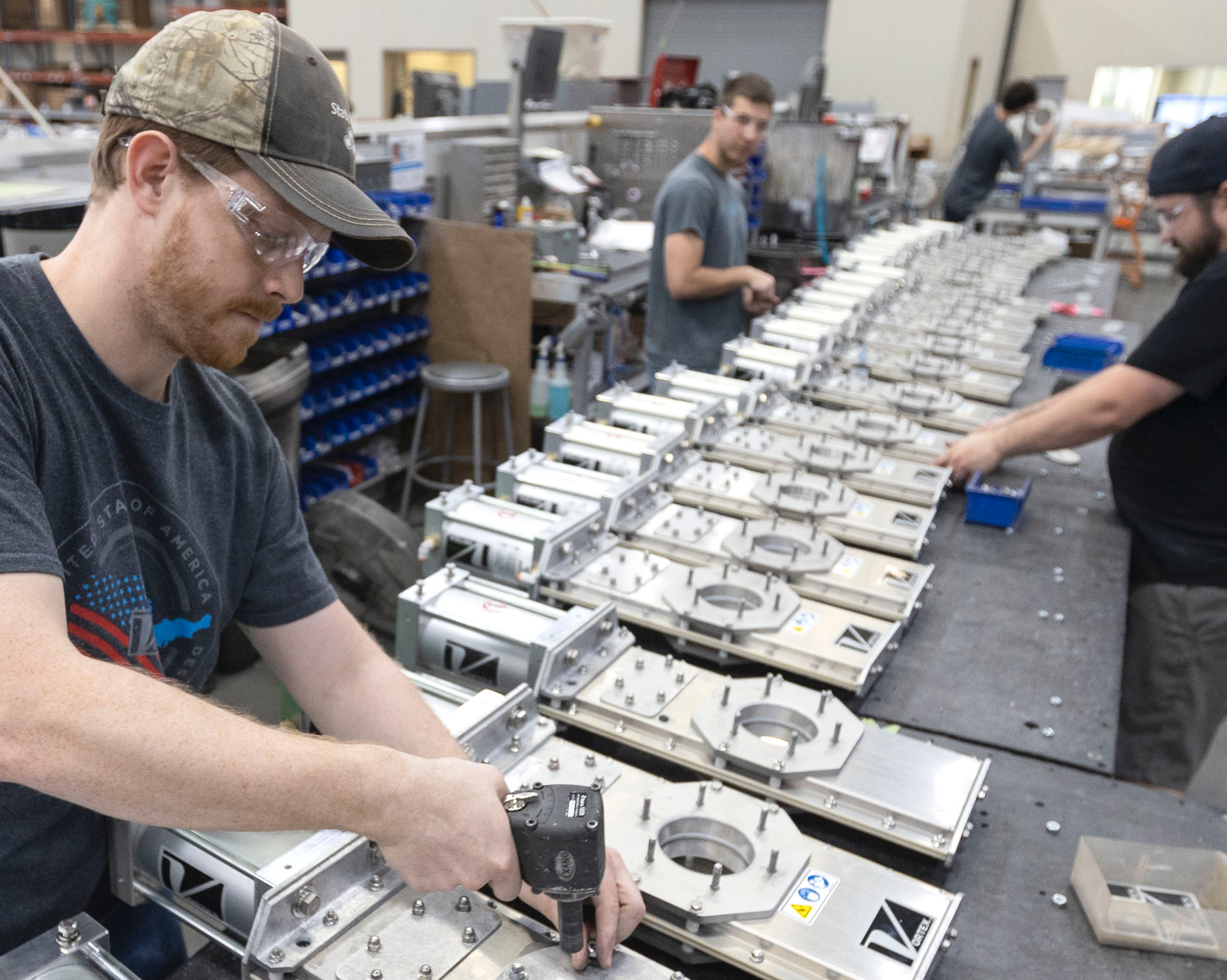

These 24 Vortex Quantum Orifice Gates feature an aluminum valve body with live loaded, wear compensating seals. The gate has a 304 stainless steel blade, main flange and orifice liners. Material contact is 304 stainless steel and polymer. Additional features include:

• Oversized, double-acting air cylinder actuator.
• Inlet and outlet has threaded studs for flange connection.
• The air cylinders are equipped with a magno-piston for use with magnetic reed position indication switches.
• The valve blade is electropolished to handle sticky materials, outdoor service and wash down conditions.
