Pelletized organic fertilizer provides an eco-friendly way to enrich soil with a slow, consistent release of vital nutrients. Its granular form allows for easy and uniform distribution, making it practical and effective for improving agricultural productivity while protecting the environment. One of our customers produces pelletized organic fertilizer from biosolids—nutrient-rich organic material recycled from wastewater treatment. These biosolids are carefully processed into dry, uniform pellets for easy storage, transport, and application. This sustainable approach not only supports healthy crop growth but also helps close the waste loop, turning a byproduct into a valuable resource.

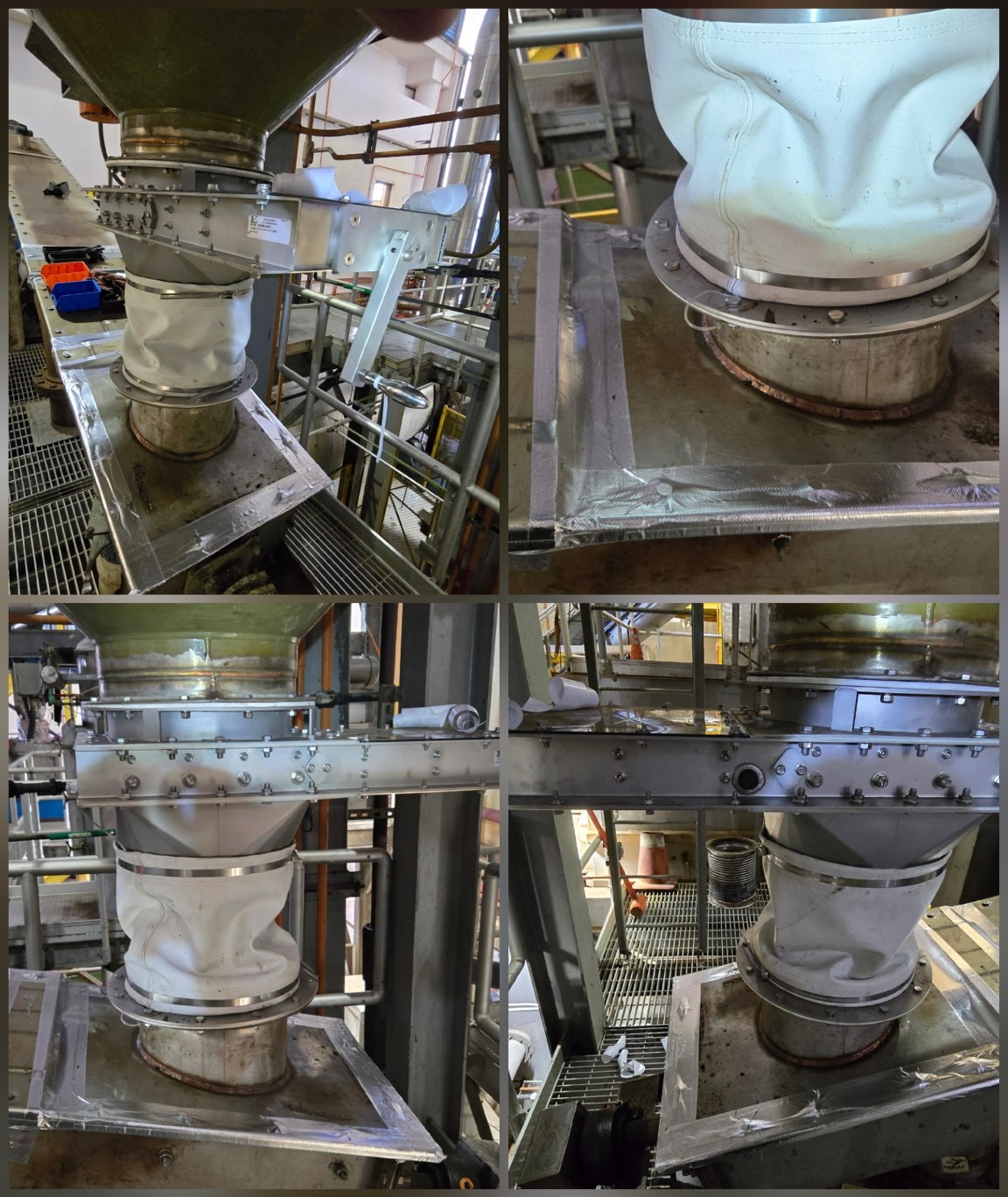

The customer was using a failing maintenance gate from one of our competitors to handle their pellets, which caused inefficiencies and downtime. They reached out to us for a better solution. Our Vortex representative, Ball Sales, and our application engineers worked closely with the customer to identify their needs and recommend a 316 stainless steel Rollergate with handcrank actuation. Additionally, we provided a 316L stainless steel round-to-square flanged inlet transition and a 316L stainless steel square-to-round flanged outlet transition stub with a sock bead for a flexible boot connection.

Equipment Breakdown

Inlet Transition: HRS-SS-12-S-V216488

• 316L Stainless Steel Round to Square Flanged Inlet Transition
• (V126488) - ROUND TO SQUARE TRANSITION WITH A 2" O.A.H.

Rollergate: Vortex Model No. SFHC12V1-S-SFS-HT3-E150867

• 12" Salina Roller Gate Valve.
• Valve body and blade are 316L stainless steel.
• Material contact is 316L stainless steel and polymer.
• Manual handcrank actuator with LH acme threads. (5 revolutions per inch of travel)
• (HT3) - Valve is rated for 250˚F(122˚C) maximum continuous service. PET side seals and upper and lower bonnet seals are live loaded and silicone rubber backed. Valve also includes cam-adjustable slide rollers and PET roller spacers. End seal and bonnet blade guides are PET.
• (E150867) - SET UP FOR VIBRATION.

Outlet Transition: H-FSST-12-S-SKB-V216488

• 12" Flanged One End, 316L Stainless Steel 6" Long Tube Stub.
• (-SKB) SOCK BEAD.
• (V216488) - FLANGES TUBE STUB WITH SOCK BEAD AND AN O.A.L. OF 2"

Why Our Rollergate Is the Right Solution

This collaboration lead to the successful implementation of a reliable and durable Rollergate that delivers several key benefits:

• Increased efficiency: The high-quality Rollergate allows for a smoother and faster transfer of pellets, reducing downtime and boosting productivity.
• Enhanced durability: The 316 stainless steel construction ensures a longer lifespan and minimal maintenance needs.
• Customizable design: By offering options like handcrank actuation and custom transitions, we tailor the equipment to meet their exact operational requirements.

The Results

Upgrading to our 316 stainless steel Rollergate transformed the customer’s operation. They experience reduced downtime, improved durability, and seamless customization—all of which enhanced their efficiency. This project highlights how our expertise and innovative equipment address specific challenges, ensuring long-term success for our customers. At Vortex, we take pride in helping customers find reliable, tailored solutions that make a lasting impact. Contact us today to see how we can help replace your old unreliable equipment.

‍
