Wye Line Diverter Handling Sheet Metal Shavings in Vacuum System

Published
March 24, 2021
Client:
Provider of factory automation and tooling solutions.
Product Quantity:
Size:
2” (50 mm)
Application:

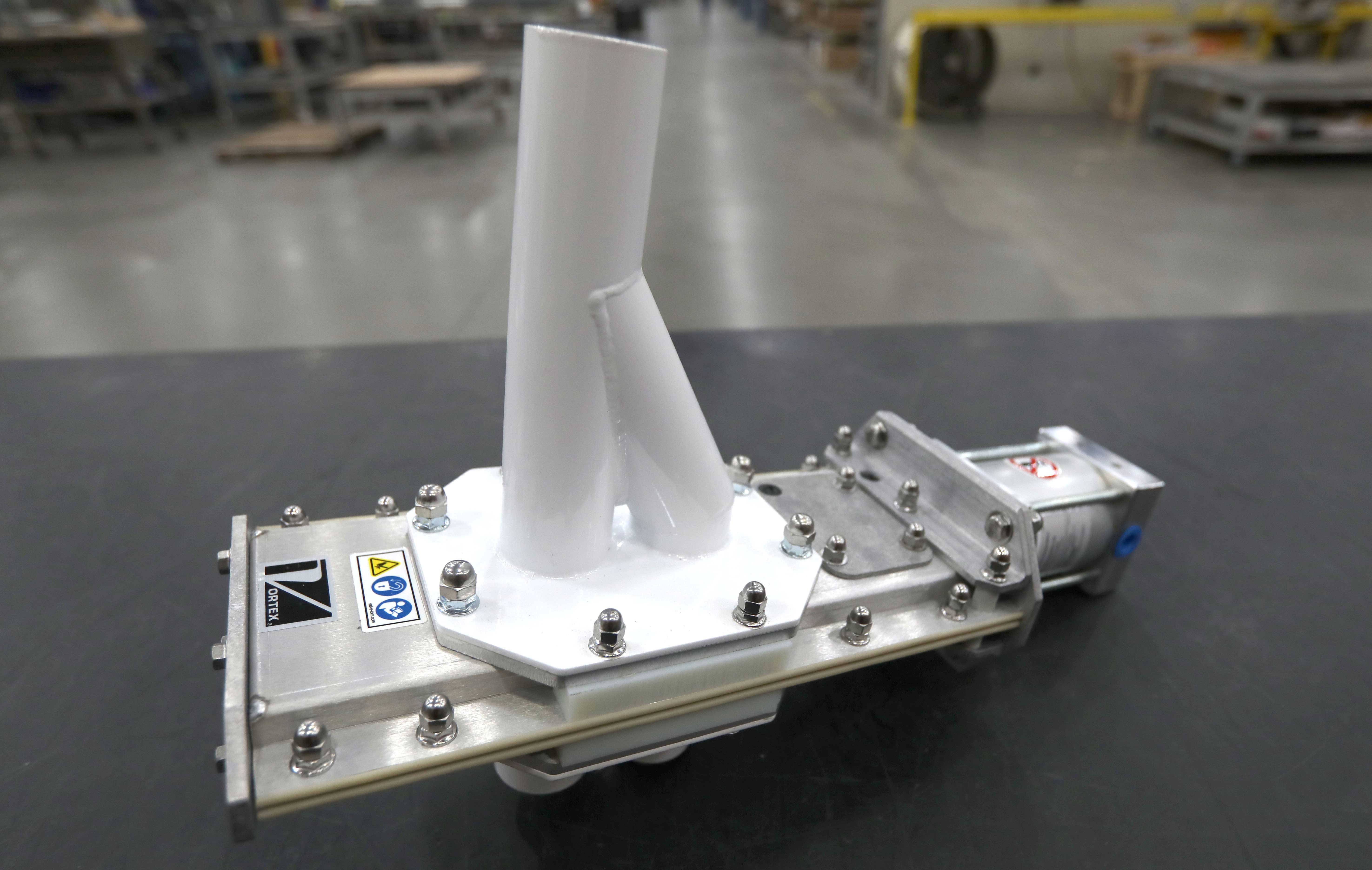

In this application, Vortex Wye Line Diverters are included on a piece of equipment that acts as a multi-tool machine used for building airplane parts. As holes are drilled to fasten sheet metal, the diverter is used as part of a vacuum system to pull away shavings. The shavings are routed through the straight leg to reduce wear and the off leg pulls to clean air. The straight leg is opposite the air cylinder to fit better in the client’s process.

• These specific Wye Line Diverters feature Teflon pressure plates.

• Aluminum valve body with live loaded, wear compensating seals with a 304 stainless steel blade.

• Inlet and outlet weldments are constructed from carbon steel. Material contact is carbon steel, 304 stainless steel and polymer.

• Inlet has a straight through conveying line design for easier "in line" installation of multiple diverters.

• PET pressure plates are backed with a foam void filler and live loaded natural rubber load seals.

• Features an electropolished valve blade.

• Double acting air cylinder actuator

• Air cylinder is equipped with a magno-piston for use with magnetic reed position indication switches.
