Case Study

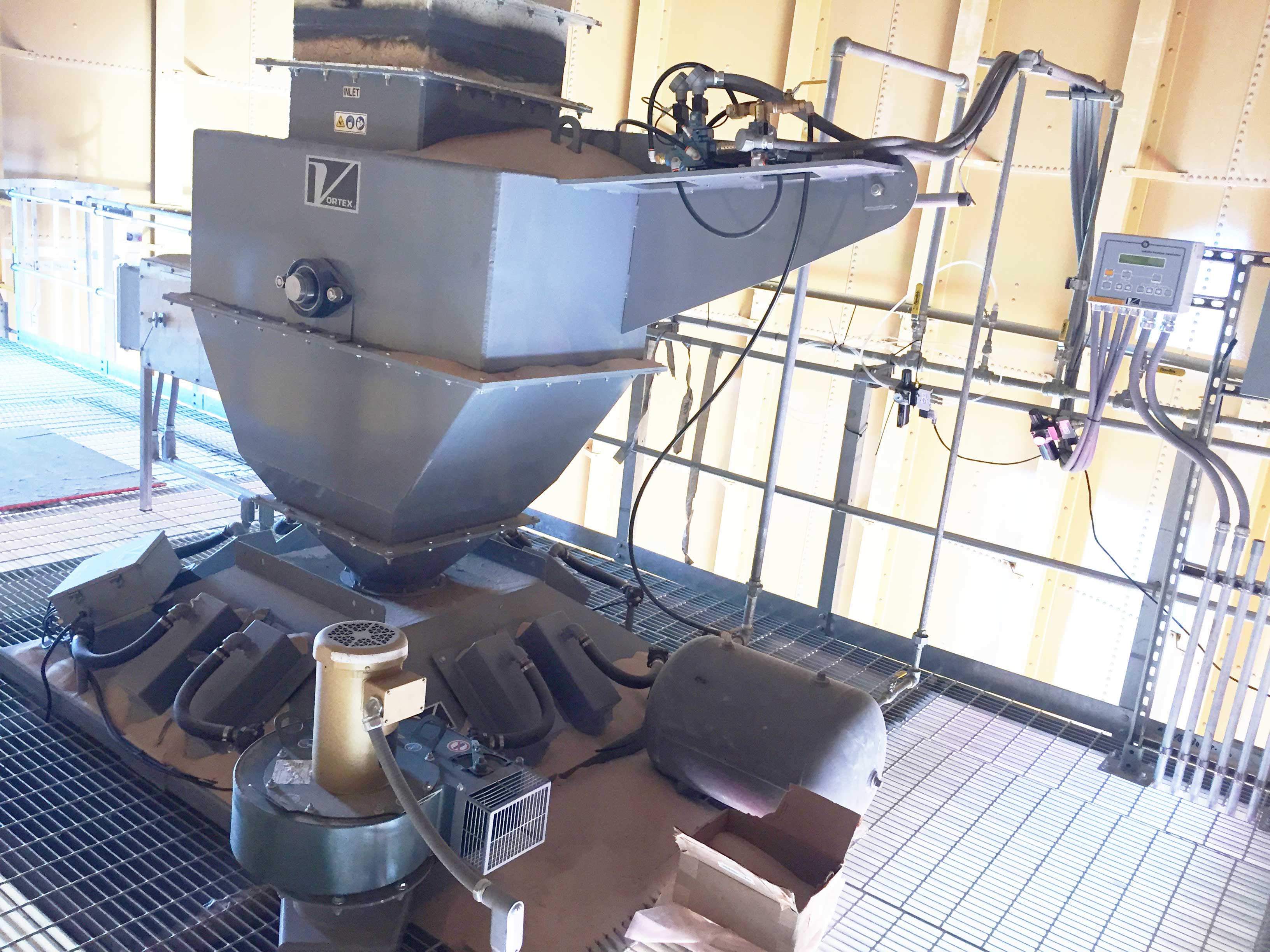

Vortex Titan Single Blade Clamshell Gate Handling Sand

Sand Mine, West Texas

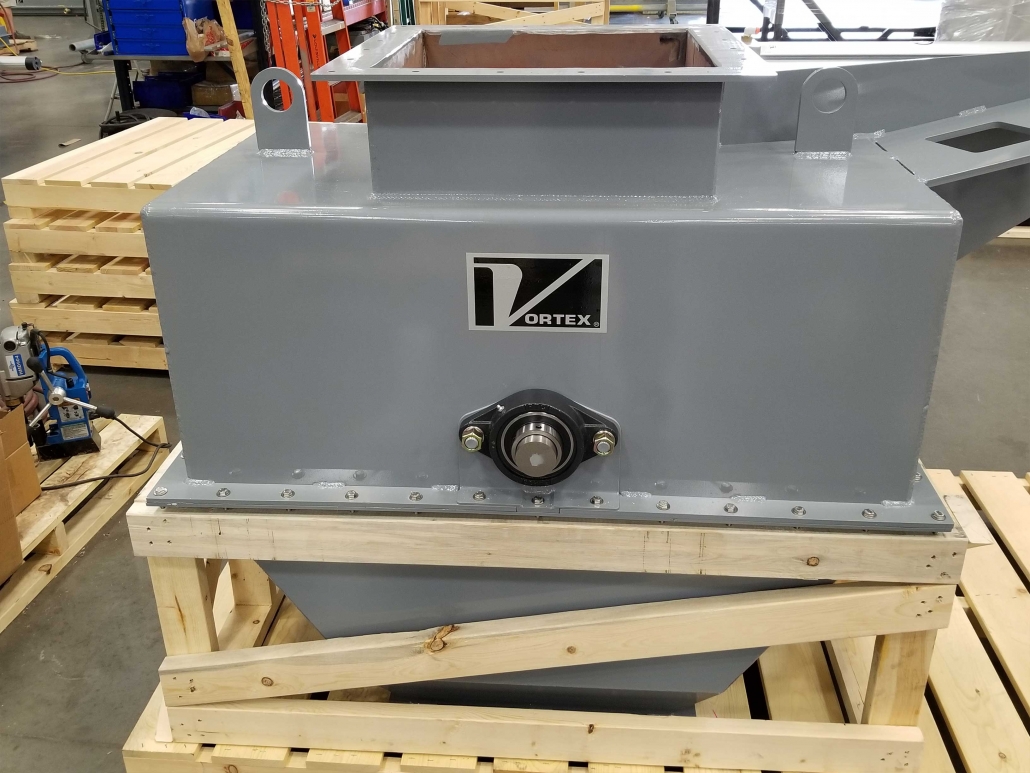

1 Vortex Titan Single Blade Clamshell Gate

20” (508 mm) – 1350 lbs. (612 kg)
The gate is mounted above a Vortex filter and telescoping spout to provide both metering and shut off of material as it is being loaded into trucks for local delivery.

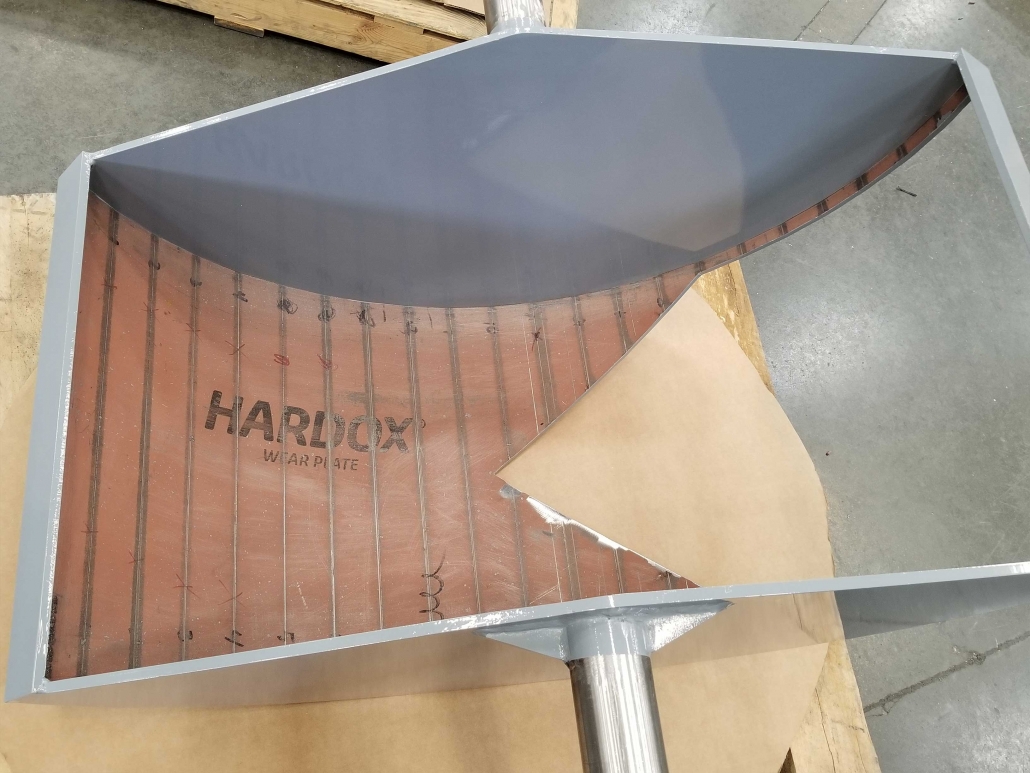

This Vortex Titan Single Blade Clamshell Gate features a “v notch” blade constructed of abrasion resistant steel (400 BNH).

The air actuator is controlled by an Infinite Variable Positioner that allows metering of material as it flows through the gate.

A linear transducer (mounted beside the air cylinder) provides feedback as to blade position.
