Case Study

Titan Slide Gates to Handle Soymeal and Wheat

Equipment Supplier, Southeast US
20” x 34” (508 mm x 864 mm) | 550 lbs. (249 kg)
The customer shipped six of these gates to an overseas location.

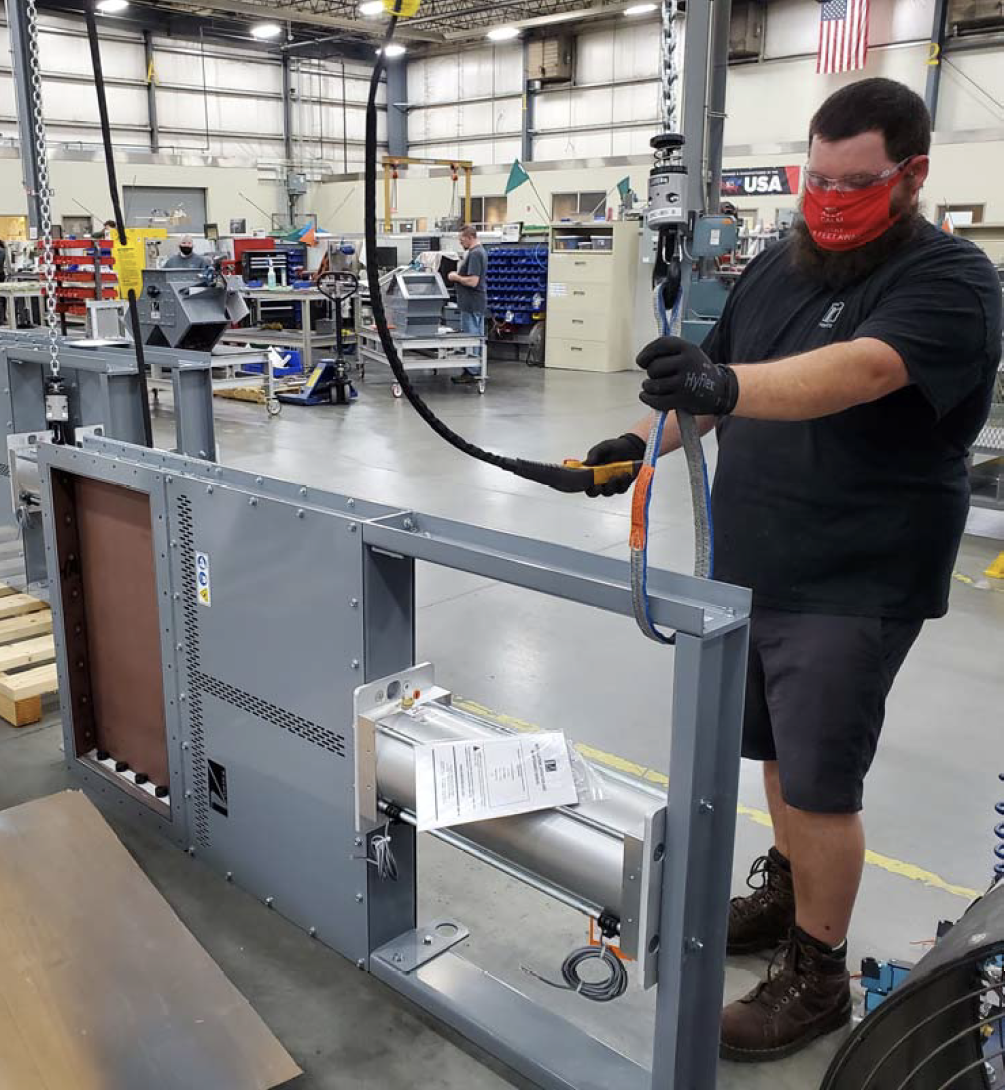

This pneumatically actuated Vortex Titan Slide Gate features a blade and inlet liners that are constructed of abrasion-resistant steel (400 BHN) to address wear from the material handled.

Confirmation of blade position is accomplished via magnetic reed switches mounted on the tie rod of the Vortex air cylinder.

The air cylinder support frame assures a smooth linear blade actuation.
