Titan Slide Gates Equipped with Return Pans to Handle Industrial Sands

Published
March 17, 2021
Client:
Sand Mine | Central United States
Product Quantity:
Size:
22” (558 mm) - 500 lbs. (227 kg)
Application:

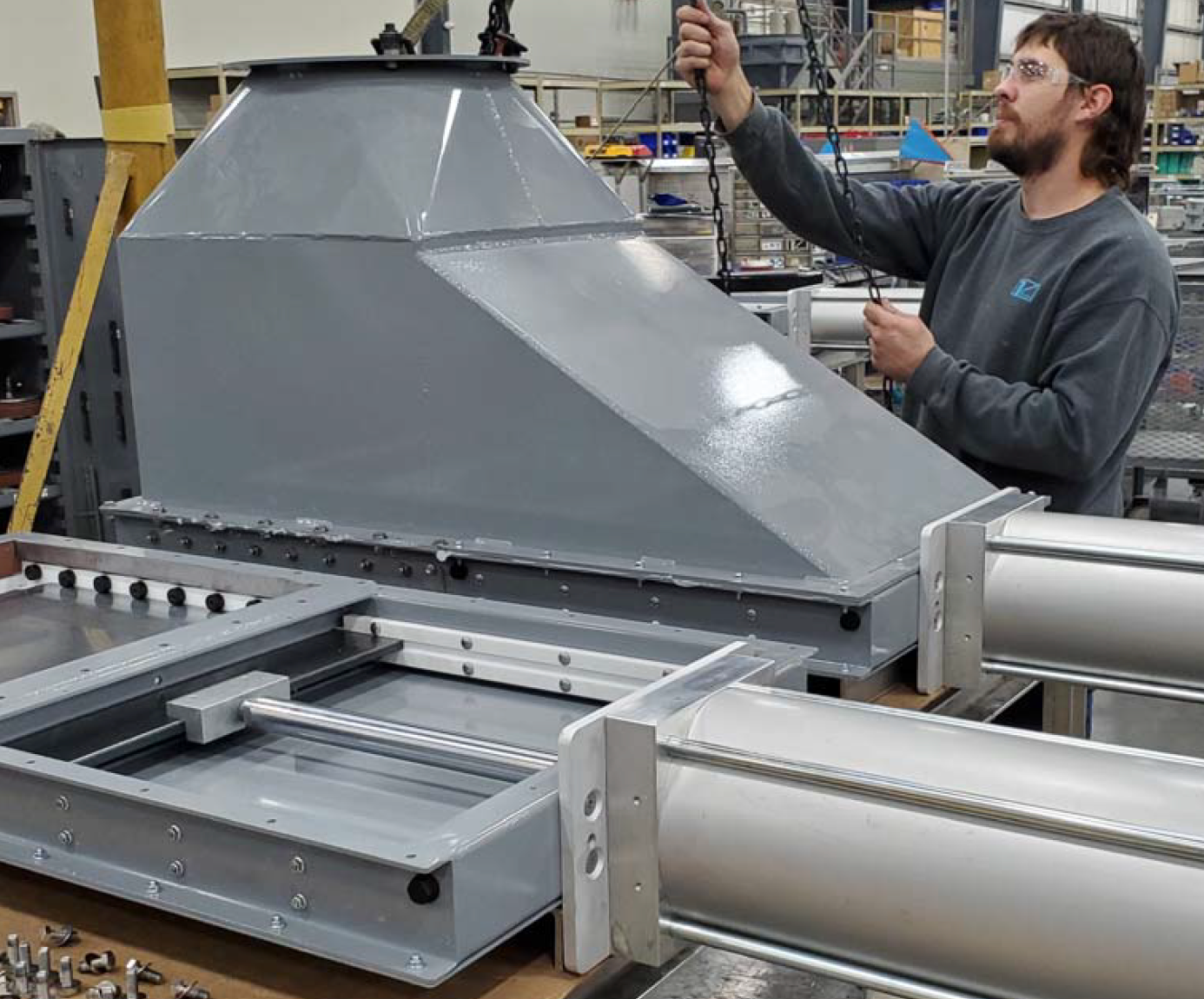

The return pans provide conveyance transitioning from 22” square to 14” round. The special bolt-hole pattern of the 14” round flange mates directly to downstream equipment.

These pneumatically actuated Vortex Titan Slide Gates feature blades and inlet liners that are constructed of abrasion-resistant steel (400 BHN) to address wear from the material handled.

Gates were manufactured with a fine material bonnet seal and return pans to assure that no silica dust is able to escape to atmosphere.
