Case Study

Titan Slide Gate with V-Notch Blade Handling Sand

Processing Facility, Midwest US
12” (305 mm) – 120 lbs (54 kg)
The gate is being used to meter material originating from a storage bin.

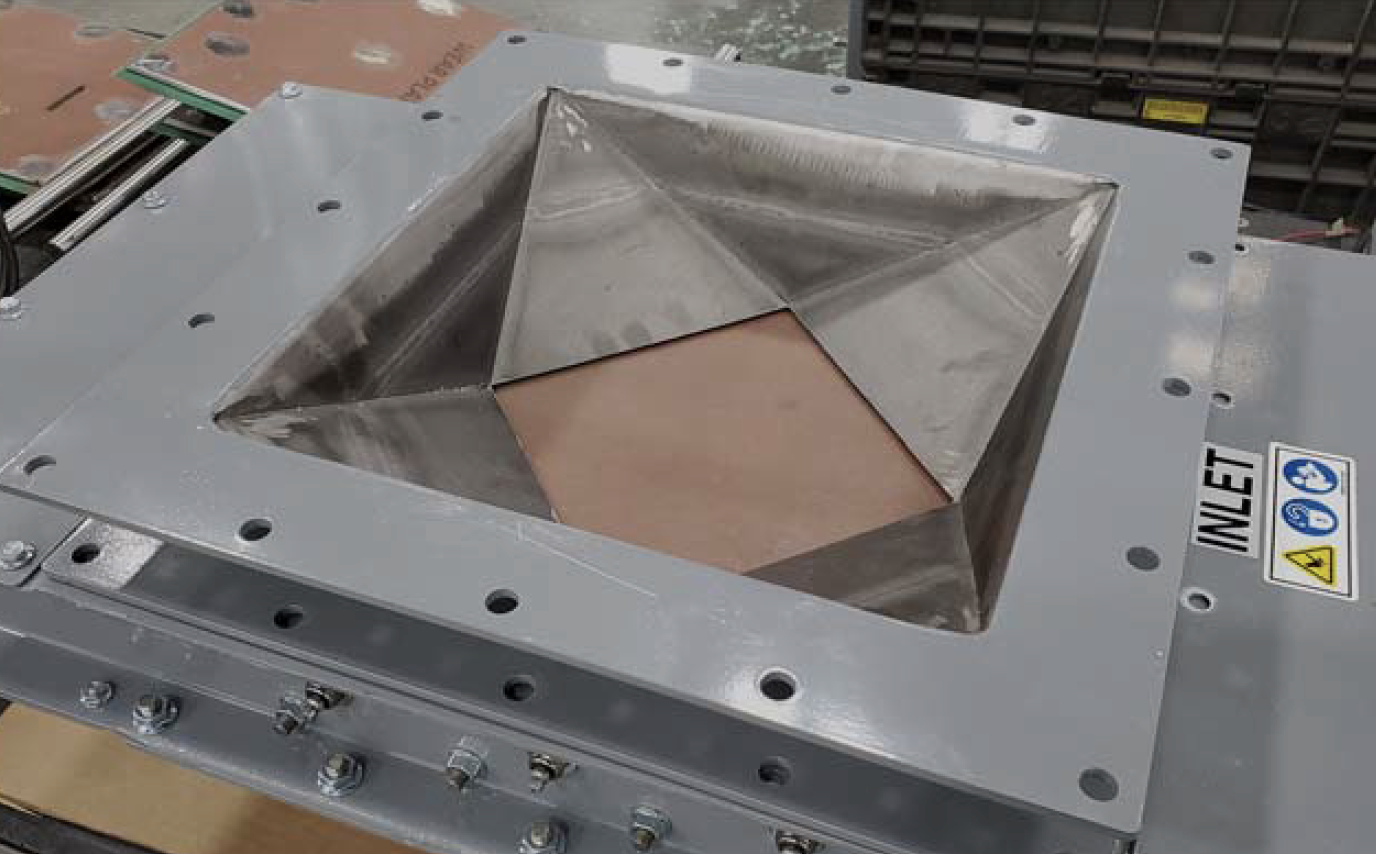

The Vortex Titan Slide Gate equipped with a v-notch blade and diamond special service inlet is designed to maintain a square discharge opening as the blade changes position. The resulting shape allows metering of material at a higher precision rate.

Additionally, if a conveyor belt is used for transport, the centered opening allows material to be deposited in the middle of the belt. Off-center belt loading can create maintenance, premature belt wear, and belt alignment issues.
