Case Study

Titan Lined Diverter to Handle Soybeans in The Netherlands

Grain Elevator, The Netherlands
500 mm x 750 mm – (19.5” x 29.5”), 544 kg – (1200 lbs)
Two identical diverters will be used to divert product from a screw conveyor to a load out station for this new application.

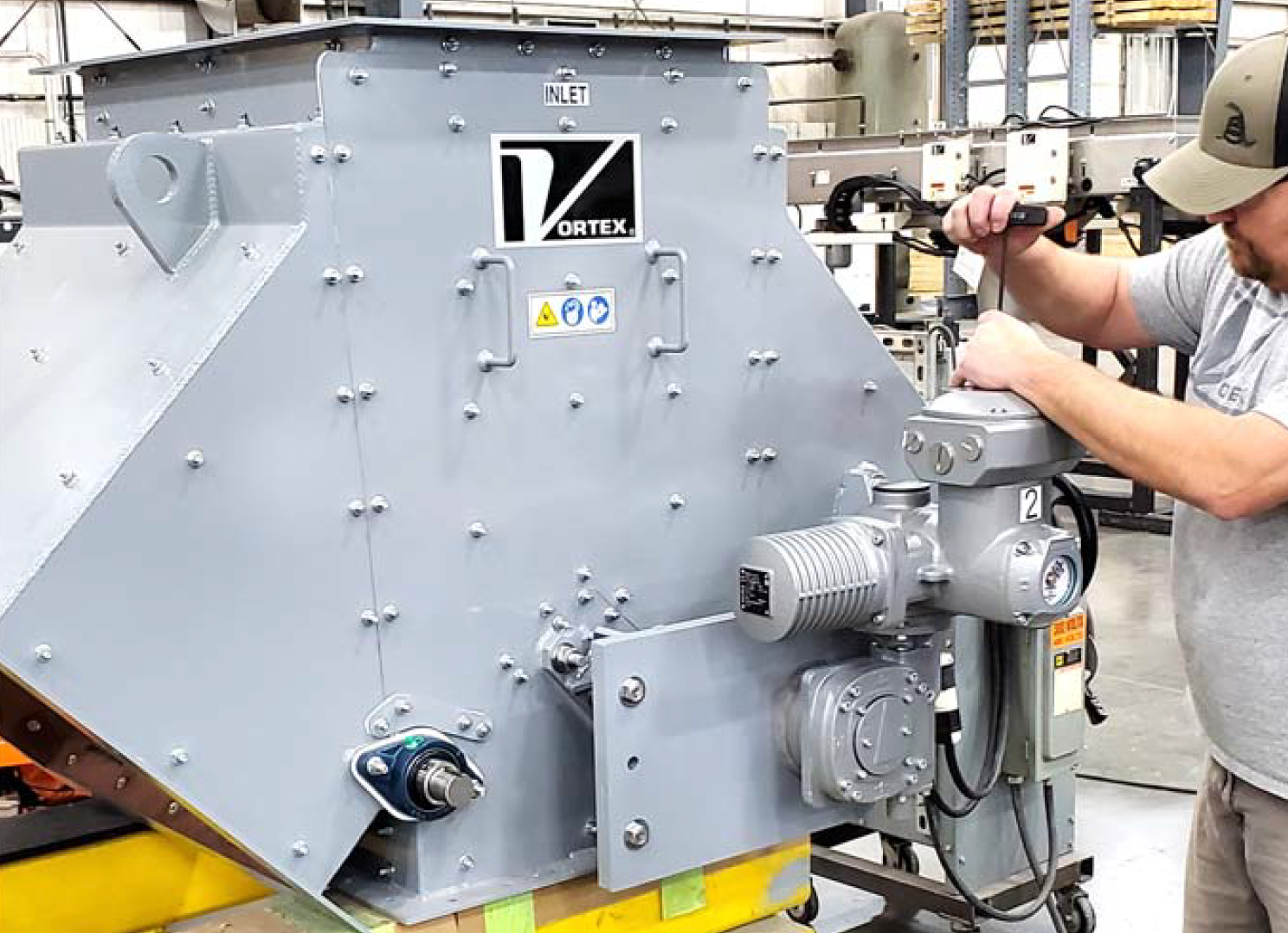

The two blades inside this Vortex 3-Way, Titan-Lined Diverter are each powered by explosion-proof, quarter-turn electric actuators (380V/3PH/50HZ).

Material contact areas contain replaceable abrasion resistant, steel liners (400 BHN). A side panel allows access to the diverter interior for inspection or maintenance without having to remove the diverter from place.

The inlet flange matches the customer’s custom bolt-hole pattern.
