Titan Lined Diverter Handling Dolomitic Limestone Rock

Published
August 17, 2020
Case Studies

Titan Lined Diverter Handling Dolomitic Limestone Rock

Published
August 17, 2020
Client:
Limestone Supplier, Southeastern US
Product Quantity:
Size:
48” x 16” (1219 mm x 406 mm) | 5200 lbs. (2358 kg)
Application:
The diverter will be mounted, tilted at a 37 degree slope (actuator side up), to become part of a chute. Lifting lugs have been added to assist with the installation.

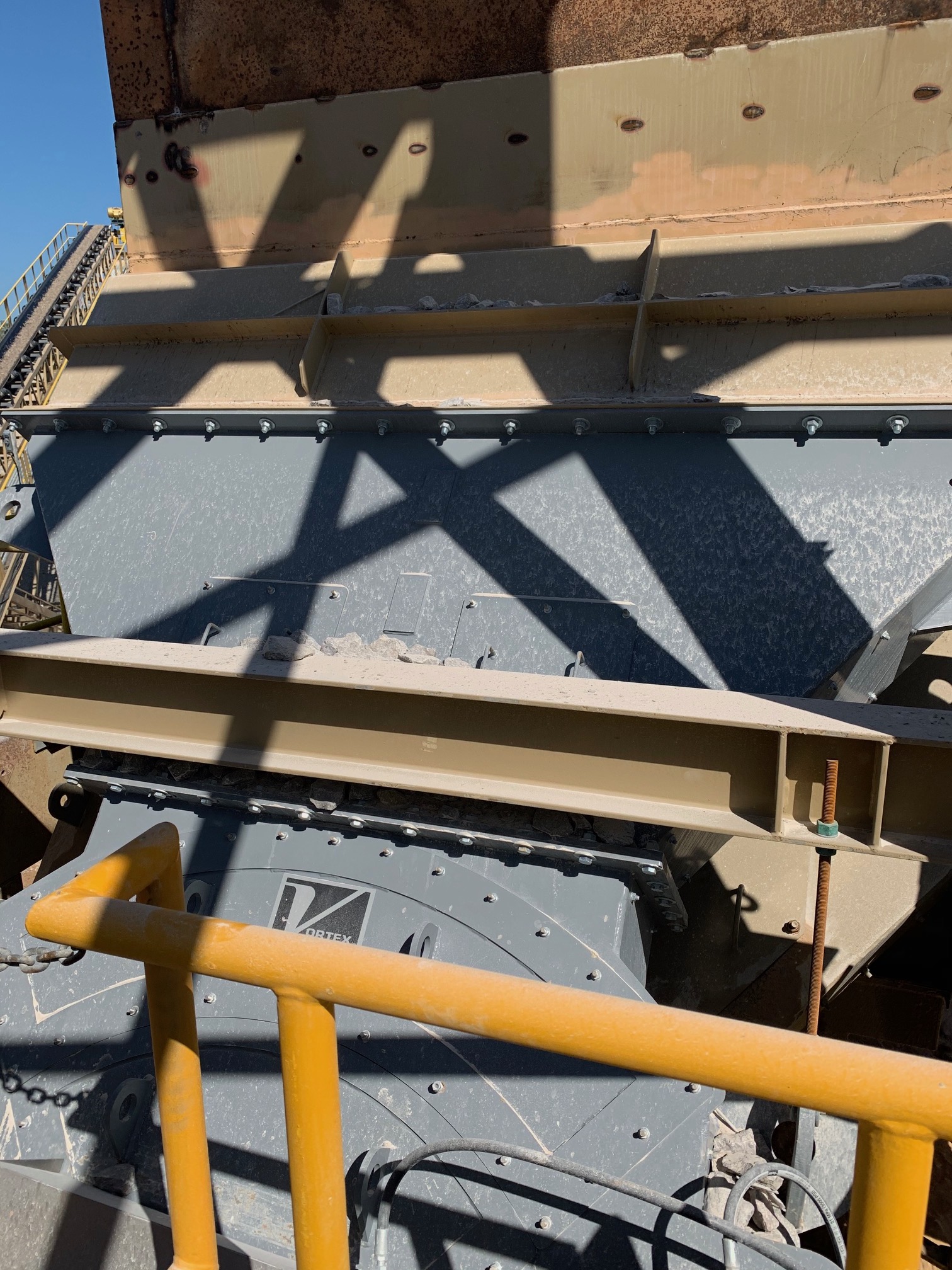

Installed

Features:

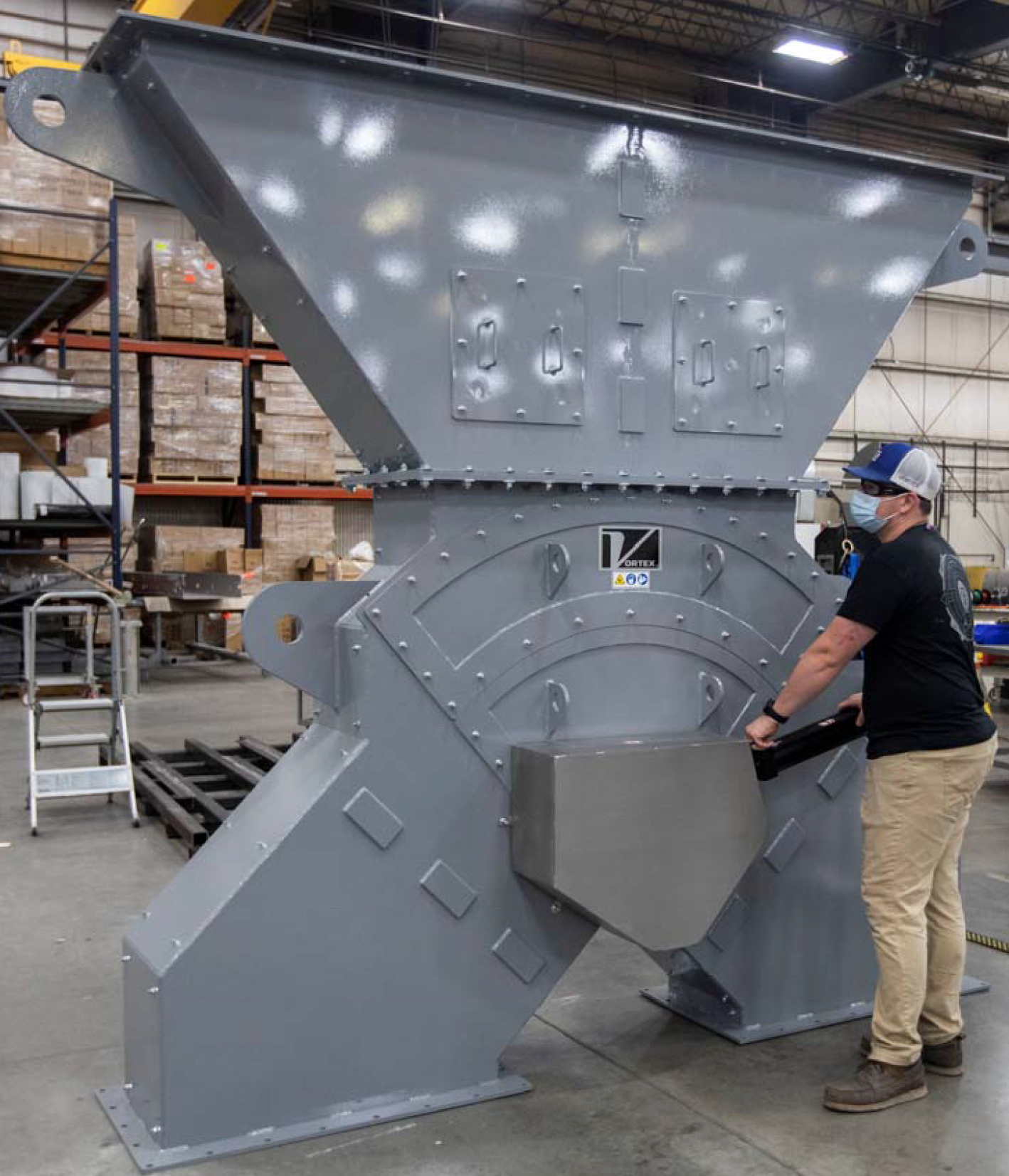

This hydraulically-actuated Vortex Titan-Lined Diverter features a 106” x 16” transition that feeds material to a 48” x 16” diverter inlet and two 36” x 16” outlets.

Material contact areas (3 sides) contain replaceable abrasion-resistant steel liners (400 BHN).

An “A-style” AR blade covers and protects the blade shaft from wear and abrasion.

Two inspection ports are mounted on the inlet transition and the diverter internals are accessible through a removable cover on the actuator side.
