Roller Gates Installed on Bulk Bag Discharge System

Published
March 16, 2020
Client:
Equipment Manufacturer, Kansas, USA
Product Quantity:
Size:
8” (203.2 mm)
Application:

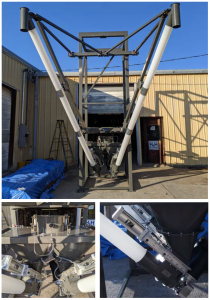

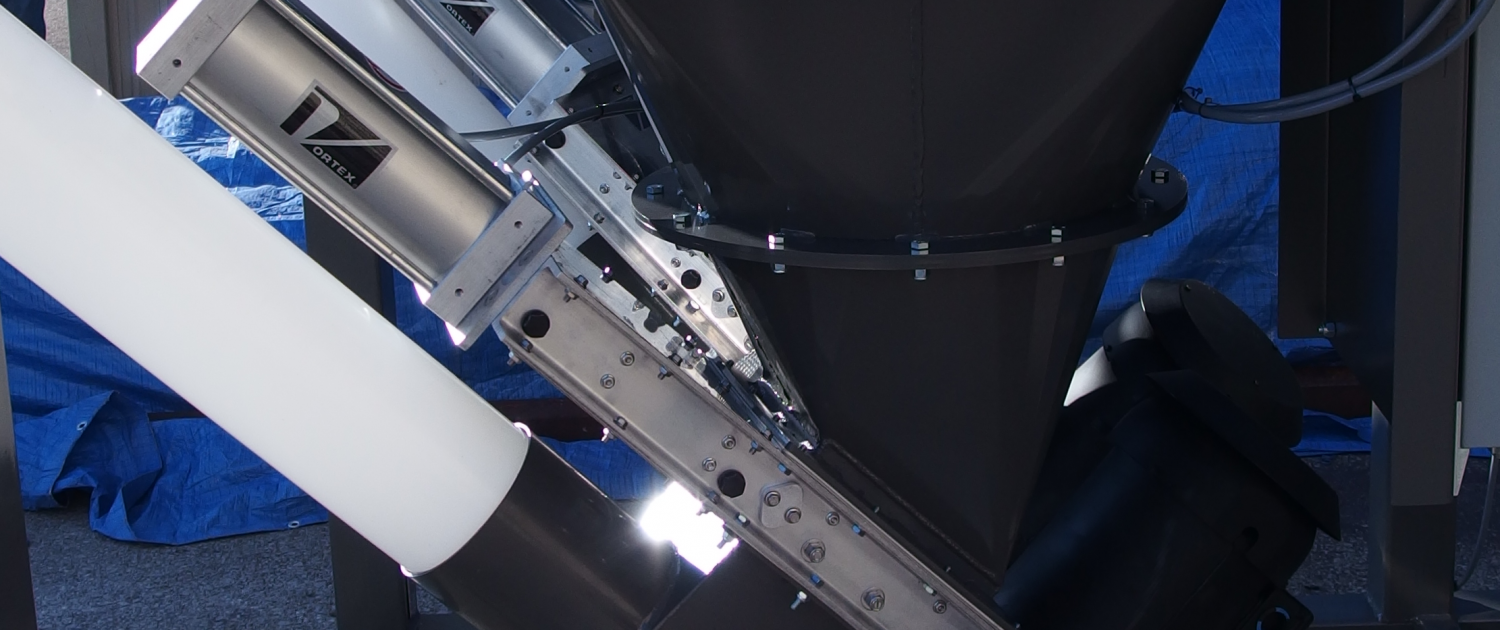

These Vortex Roller Gates are installed on a H&H Design Series 2000 Bulk Bag Discharge System. The gates are installed below the bag bottom support pan and are used to control flow into the flex augers.

Features:

  • These rectangular roller gates were constructed to match the customer’s flange pattern and feature a valve body constructed from 6061-T6 aluminum, and blade & material contact areas constructed from 304 stainless steel.
  • Gates are actuated using double-acting air cylinders.
  • Lower bonnet seals are live loaded and silicone rubber backed. Valves also include cam-adjustable slide rollers and PET roller spacers.
  • Milled access slots in the side frame allows removal and replacement of bonnet seals while the valves remain in service.
