Pivoting Cute Diverter Assists at a Sand Processing Facility

Published
October 19, 2020
Client:
Sand Processing Facility, West Texas
Size:
400 mm (16”) – 777 kg (1714 lbs)
Application:
The diverter replaces a competitor’s problematic flapper diverter.

Features:

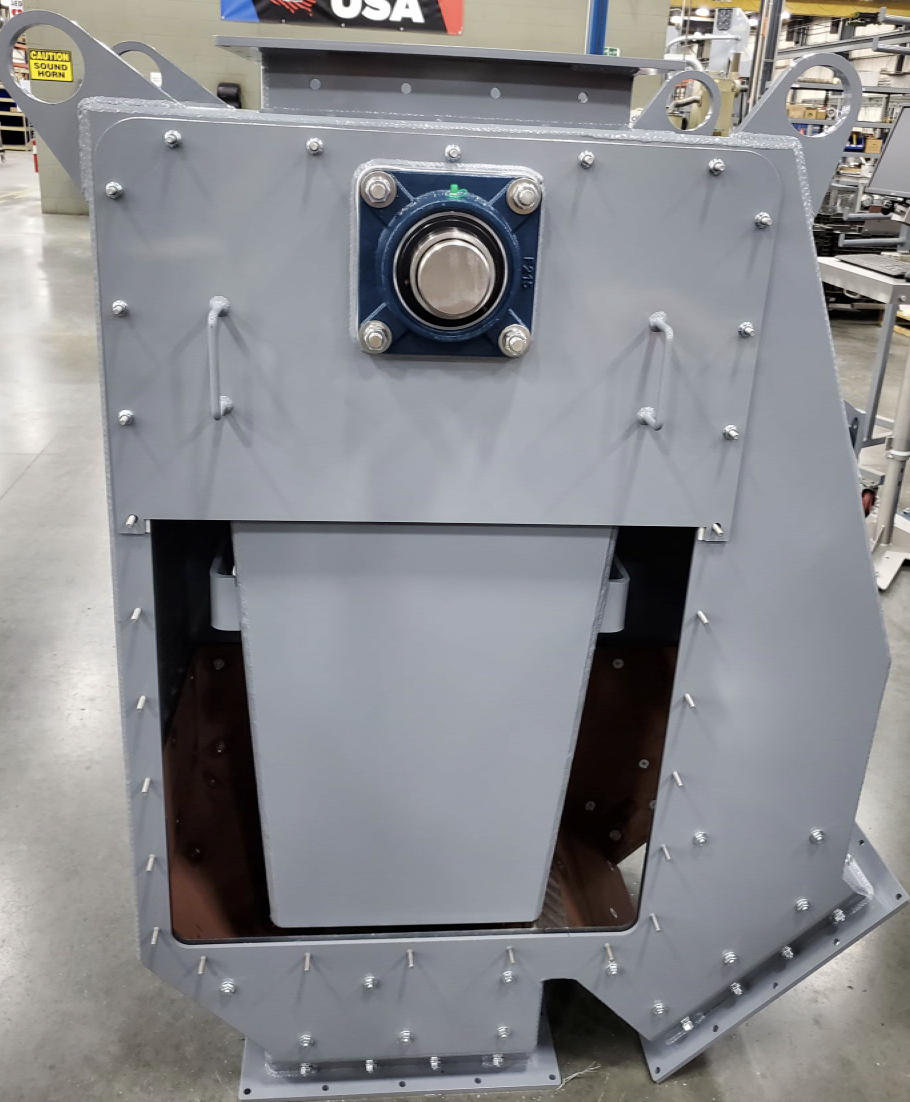

This Vortex Two-Way Pivoting Chute Diverter features an internal chute and wear liners constructed of abrasion resistant steel (400 BHN). Lifting lugs provide installation assistance. Once installed, maintenance or replacement of worn parts can be accomplished through an external side panel access without having to remove the diverter.

This is a straight-leg model (SL) incorporating a 45° off-leg. The SL option is preferred when a majority of product is being conveyed to one destination, as less abrasion occurs.
