Case Study

Pivoting Chute Diverter Handling Clinker

Industrial Contractor, Australia
900 mm (36”) – 4990 kg (11000 lbs)
The Vortex Pivoting Chute Diverter was chosen for this new cement facility based on the diverter’s features and recommendations from current Vortex customers.

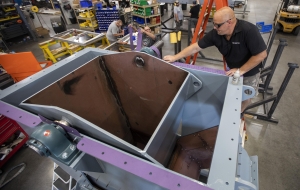

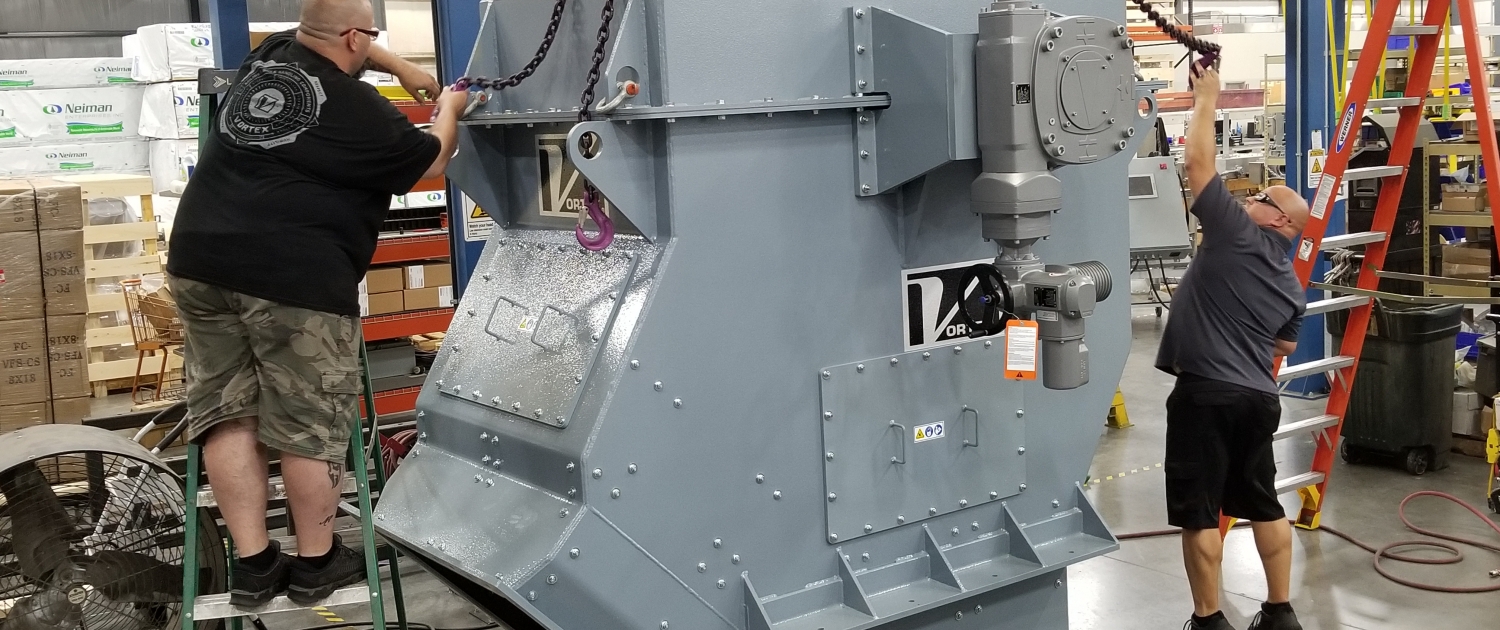

This quarter-turn, electrically actuated (400V/3PH/50HZ) Vortex Titan Pivoting Chute Diverter is designed to manage extreme abrasion. It contains an inlet chute and internal pivoting chute made of ¾” thick abrasion-resistant steel (400 BHN). The outlet legs feature ½” thick replaceable liners (400 BHN).

The diverter’s ½” carbon steel body is protected by a customer specified paint that addresses local environmental conditions.
