Grain processing facilities handle millions of bushels of essential commodities that form the foundation of the animal feed supply chain. From soybeans that become high-quality feed to the various other grains used in livestock nutrition, these operations ensure agricultural products are processed efficiently and safely for animal consumption. However, grain handling presents unique challenges—particularly dust control during loading operations.

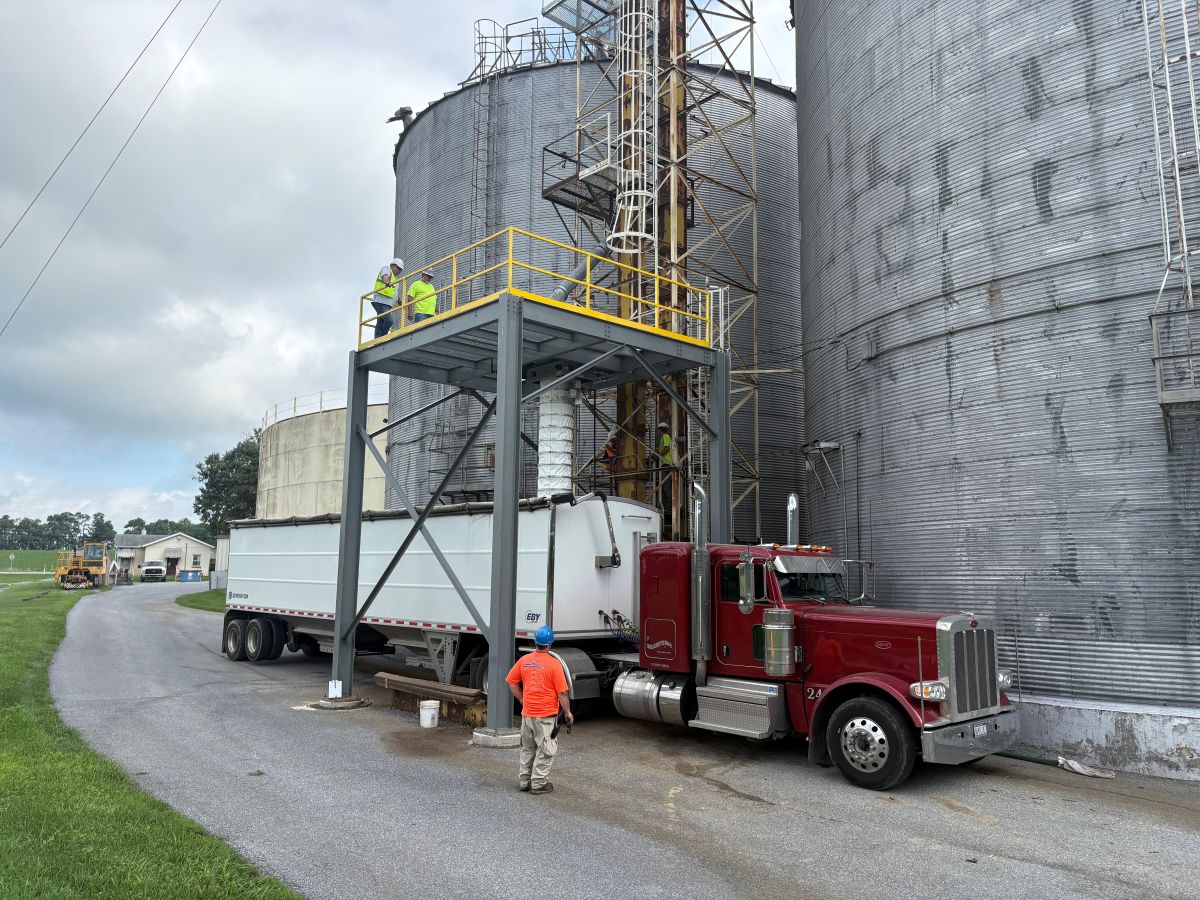

A recent installation at a grain processing facility demonstrates how the right equipment addresses these persistent dust issues while maintaining operational efficiency and product quality.

The Challenge: Controlling Grain Dust During Loading Operations

This grain processing facility manages various grain types throughout the year, requiring thorough cleaning processes between different commodities to prevent cross-contamination. During loading operations, the facility experienced significant dust generation as trucks were filled for transport to animal feed production facilities.

Grain dust poses multiple concerns for processing operations. Fine particles become airborne during material transfer, creating potential respiratory hazards for workers and contributing to product loss. Traditional loading methods often struggle to contain these fugitive emissions effectively, particularly when handling dry commodities like soybeans.

The facility's existing loading system generated excessive dust plumes during truck filling operations. This dust not only represented product loss but also required additional cleanup procedures and posed compliance challenges with air quality regulations.

The Solution: Vortex Loading Spout and Inline Filter System

The facility selected a comprehensive dust control solution featuring a Vortex cone-in-cone loading spout paired with an inline filtration system. This integrated approach addresses dust generation at its source while maintaining efficient loading rates.

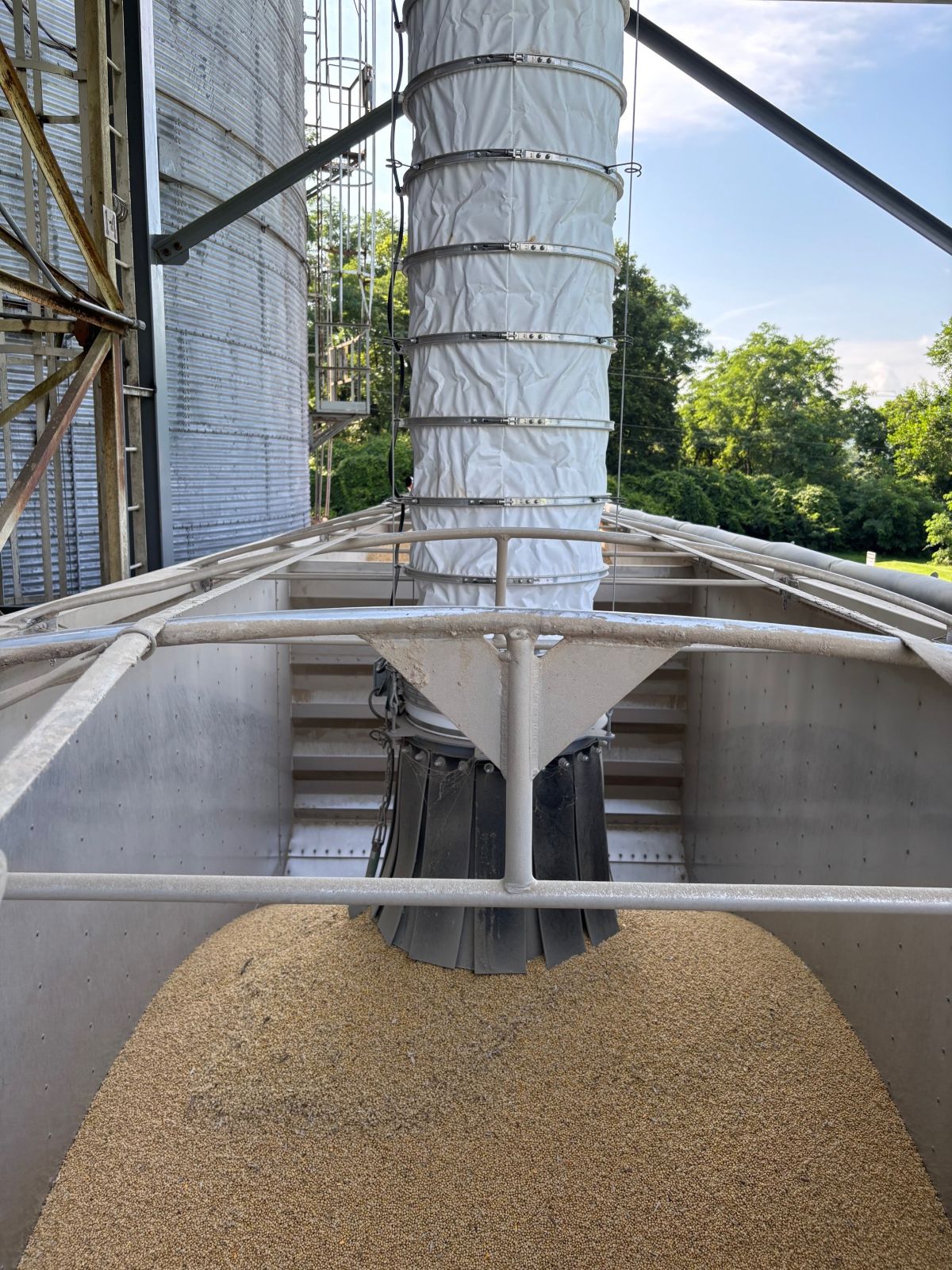

The Vortex loading spout utilizes a stacking cone design that extends and retracts based on the fill level of the receiving vessel. As trucks are loaded, the spout maintains proximity to the material surface, minimizing the distance grain falls and reducing dust generation. The cone-in-cone configuration creates a controlled loading environment that contains fugitive particles.

The inline filtration system operates as an active dust collection unit, drawing displaced air and particles through high-efficiency filter cartridges. During loading operations, the system captures airborne dust particles and uses reverse pulse jets to reintroduce collected material back into the load stream. This approach eliminates product loss while maintaining clean air exhaust to atmosphere.

The filtration system features vertically-mounted filter cartridges that leverage gravity to assist dust release during cleaning cycles. Pleated polyester media provides 99.8% efficiency for particles one micron and larger, ensuring minimal emissions while extending filter service life.

Technical Specifications and Performance

The installation incorporates several design features that enhance operational reliability. The loading spout's four-cable hoist system provides enhanced stability compared to traditional two or three-cable designs, distributing weight more evenly across lifting cables and reducing wear.

CNC-machined pulleys with precision cable grooves prevent cable fraying and ensure smooth extension and retraction cycles. The outer sleeve material contains fugitive dust while allowing flexible movement during spout operation.

The inline filter system operates only during loading operations, reducing energy consumption compared to central dust collection systems that run continuously. Magnehelic pressure gauges provide differential pressure readings to indicate when filter maintenance is required.

Quick-lock filter cartridge access panels allow rapid inspection and maintenance without tools, minimizing downtime during routine service procedures.

Measurable Results Drive Operational Improvement

The integrated loading spout and filtration system delivers quantifiable benefits for grain processing operations. Dust emissions are reduced to less than 0.005 grains per dry standard cubic foot of exhaust air, ensuring regulatory compliance while protecting worker health.

Product recovery through the dust reintroduction system eliminates material loss that previously occurred with traditional loading methods. This recovered product represents direct cost savings and improved operational efficiency.

The self-contained design eliminates the need for extensive ductwork installations required by central dust collection systems, reducing both initial capital investment and ongoing maintenance requirements.

Optimizing Your Grain Handling Operations

Modern grain processing demands solutions that balance operational efficiency with environmental compliance and worker safety. Dust control technology continues advancing to meet these evolving requirements while supporting the animal feed supply chain that sustains livestock populations.

If your facility experiences similar dust control challenges during grain loading operations, contact Vortex Global to discuss how integrated loading spout and filtration systems can optimize your material handling processes. Our engineering team provides application-specific solutions designed for your operational requirements and commodity characteristics.
