TPV Gates Assist in Loading Minerals into Sea Containers

Published
November 28, 2017
Client:
Mineral processor, USA
Product Quantity:
Size:
Size: 8 in. (203 mm) Weight: 158 lbs. (72 kgs)
Application:
These Vortex TPV Gates are designed to handle abrasive materials in a dense phase pneumatic conveying process. In this client’s application, line pressures are approximately 35-40 psig.

Handled Material: Mineral powder

Features:

Each gate is equipped with…

  • Blade & material contact areas constructed from 440C stainless steel
    (Rockwell hardness = C 60).
  • A pre-wired terminal box (to save time & expense during installation).

Results:

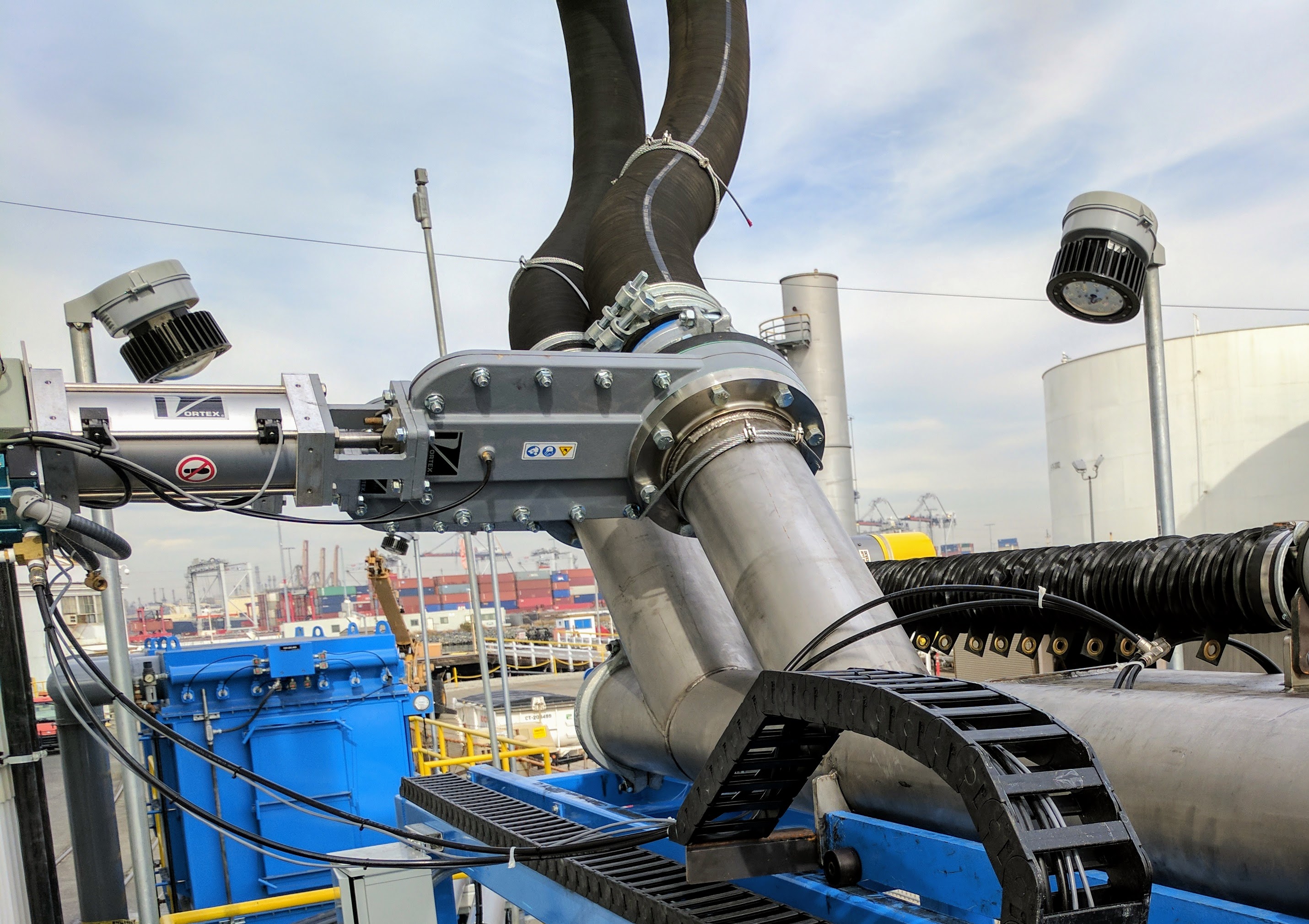

The Vortex TPV Gates are being used to isolate two source lines that are feeding into a main, common conveying line. The main line is conveying material into a sea container for shipping.
