Case Study

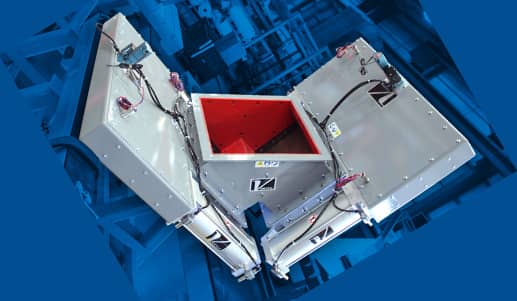

Gravity Vee Diverter Handling Soybeans

Grain Elevator – Indiana USA
Size: 16 x 24 in | 400 x 600 mm
Replace a flapper diverter that was causing the company maintenance issues and downtime.


  • Constructed from two Dual-Cylinder Titan Slide Gates (TSGs). The dual-cylinder design allows direct replacement within the existing footprint of the old diverter.
  • Rectangular gate opening.
  • Kryptane® Red liners to address the abrasiveness of soybeans, so that the diverter valve will wear at a much slower rate. This extends the valve's service life.

Results: The new diverter allows the grain elevator to control material flow through both outlets simultaneously, one outlet at a time, or a compete shut-off.
